Manual - Modulo Sensor de Humedad y Temperatura

Objetivo


El objetivo de este manual es ofrecer la manera de testear el modulo de humedad y temperatura KY-015 con nuestro Uno R3 midiendo la humedad y temperatura del ambiente.


Materiales necesarios:

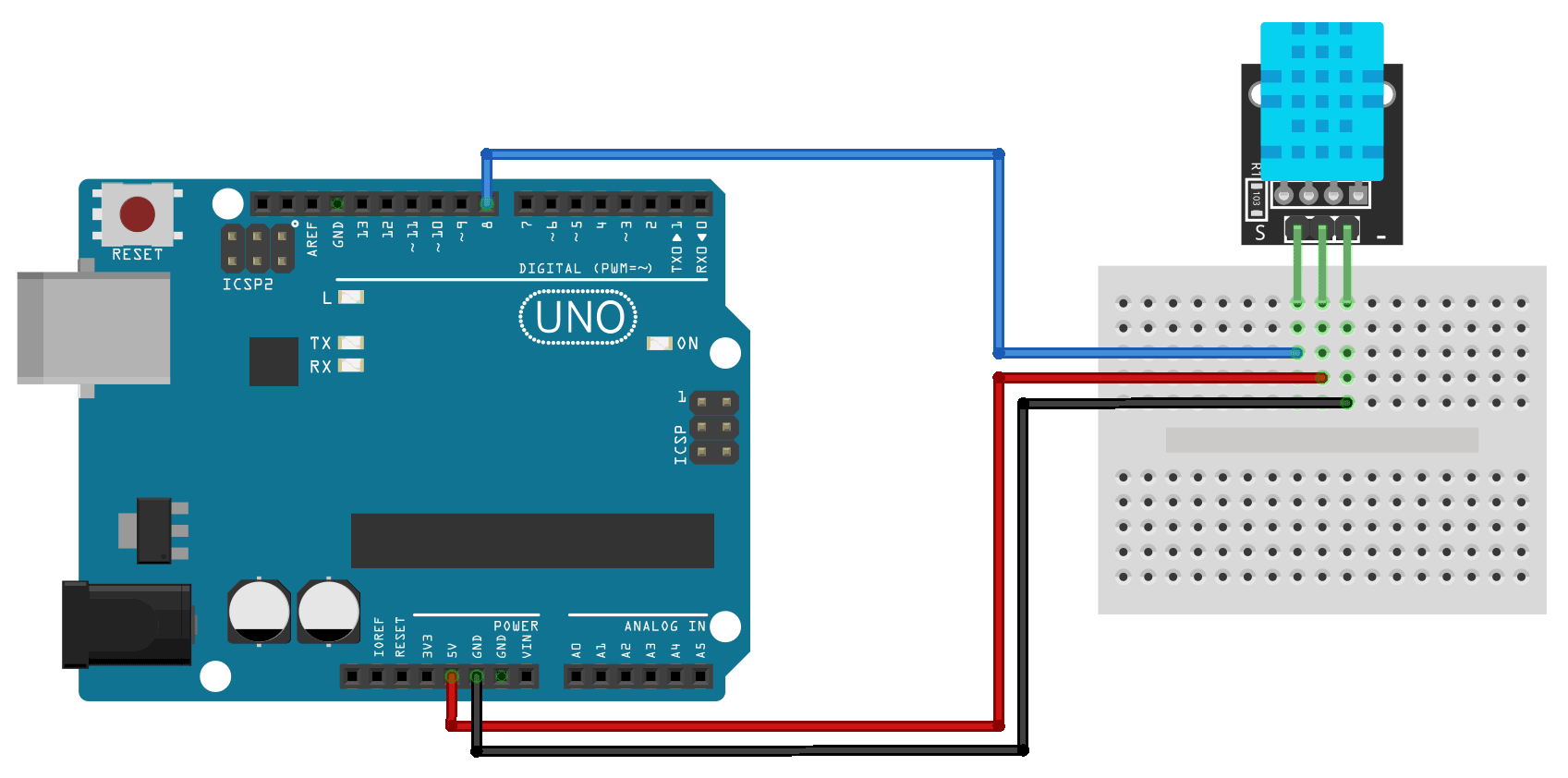

Diagrama de conexión:



SENSOR KY-015

 ARDUINO UNO R3

Pin (Centro) 5V
Pin (S) Pin 8
Pin (-) GND (-)




 Codigo utilizado:

//KY015 DHT11 Temperature and humidity sensor
int DHpin = 8;
byte dat [5];
byte read_data () {
  byte data;
  for (int i = 0; i < 8; i ++) {
    if (digitalRead (DHpin) == LOW) {
      while (digitalRead (DHpin) == LOW); // wait for 50us
      delayMicroseconds (30); // determine the duration of the high level to determine the data is '0 'or '1'
      if (digitalRead (DHpin) == HIGH)
        data |= (1 << (7-i)); // high front and low in the post
      while (digitalRead (DHpin) == HIGH); // data '1 ', wait for the next one receiver
     }
  }
return data;
}

void start_test () {
  digitalWrite (DHpin, LOW); // bus down, send start signal
  delay (30); // delay greater than 18ms, so DHT11 start signal can be detected

  digitalWrite (DHpin, HIGH);
  delayMicroseconds (40); // Wait for DHT11 response

  pinMode (DHpin, INPUT);
  while (digitalRead (DHpin) == HIGH);
  delayMicroseconds (80); // DHT11 response, pulled the bus 80us
  if (digitalRead (DHpin) == LOW);
  delayMicroseconds (80); // DHT11 80us after the bus pulled to start sending data

  for (int i = 0; i < 4; i ++) // receive temperature and humidity data, the parity bit is not considered
    dat[i] = read_data ();

  pinMode (DHpin, OUTPUT);
  digitalWrite (DHpin, HIGH); // send data once after releasing the bus, wait for the host to open the next Start signal
}

void setup () {
  Serial.begin (9600);
  pinMode (DHpin, OUTPUT);
}

void loop () {
  start_test ();
  Serial.print ("Current humdity =");
  Serial.print (dat [0], DEC); // display the humidity-bit integer;
  Serial.print ('.');
  Serial.print (dat [1], DEC); // display the humidity decimal places;
  Serial.println ('%');
  Serial.print ("Current temperature =");
  Serial.print (dat [2], DEC); // display the temperature of integer bits;
  Serial.print ('.');
  Serial.print (dat [3], DEC); // display the temperature of decimal places;
  Serial.println ('C');
  delay (700);
}
