EXPERIMENTO LUZ DE CONTROL DE TRAFICO CON PASE PEATONAL

Materiales necesarios:

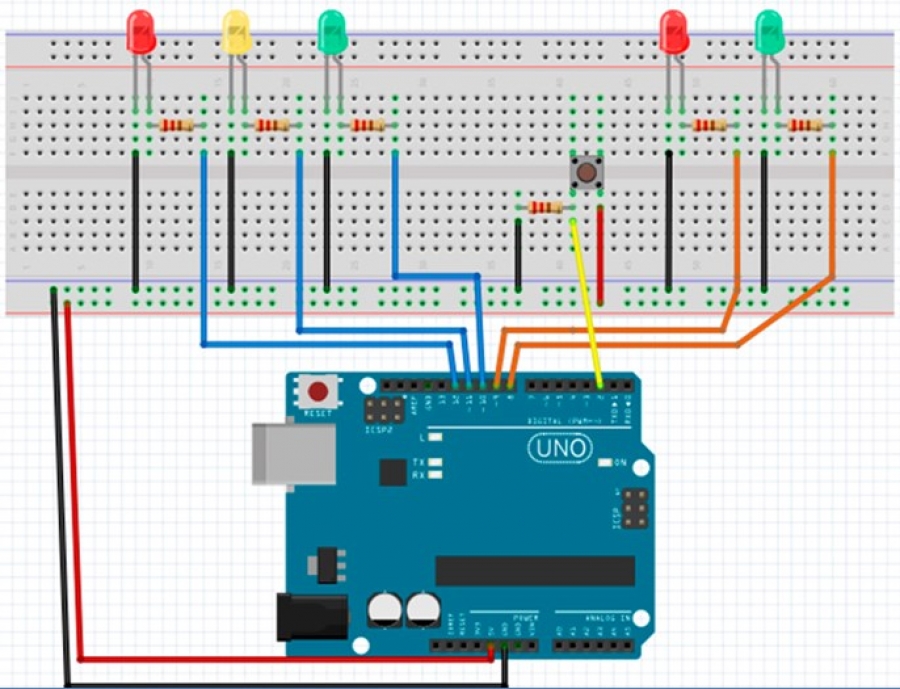

Grafico de Conexión:






Código:






// Variables

int carRed = 8;

int carYellow = 11;

int carGreen = 9;

int pedRed = 12;

int pedGreen = 10;

int pedBtn = 2;

int val = 0;

void setup() {

                pinMode(pedRed, OUTPUT);

 pinMode(pedGreen, OUTPUT);

 pinMode(carRed, OUTPUT);

 pinMode(carYellow, OUTPUT);

 pinMode(carGreen, OUTPUT);

 pinMode(pedBtn, INPUT);

}

void loop(){

                digitalWrite (pedRed, HIGH);

 digitalWrite (carGreen, HIGH);

 val = digitalRead(pedBtn);



  if (val == HIGH) {

                               delay(2000);

                               digitalWrite(carGreen, LOW);

                               digitalWrite(carYellow, HIGH);

                               delay(3000);

                               digitalWrite(carYellow, LOW);

                               digitalWrite(carRed, HIGH);

                               delay(3000);

                               digitalWrite(pedGreen, HIGH);

                               digitalWrite(pedRed, LOW);

                               delay(10000);

                               digitalWrite(pedGreen, LOW);


                        digitalWrite(pedRed, HIGH);



                        delay(3000);

                        digitalWrite(carYellow, HIGH);

                        delay(3000);

                        digitalWrite(carYellow, LOW);

                        digitalWrite(carRed, LOW);

     }

 }
